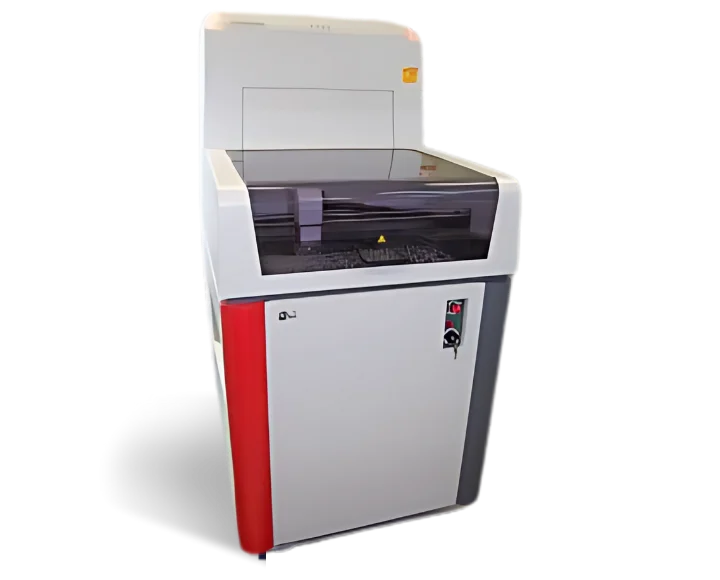

Bruker D4 Endeavor

The Bruker D4 Endeavor is built on the same platform as the D8 Series 1 and 2 instruments, but is designed for maximum throughput. They served users with high sample volumes who needed large autosamplers. These have been the ideal choice for industries like cement, geology, and aluminum production. The D4 comes standard with a 66-position autosampler […]

Request a Quote

Key Info

  • HIGH-THROUGHPUT
     Designed for continuous use with a 66-position autosampler integrated into the housing.
  • Compatible with Bruker LynxEye detectors for rapid data collection.
  • COMPACT
     The D4 uses nearly identical hardware to its research-style siblings, but packaged in the most space-efficient frame possible. The result is a full-featured powder XRD with a large autosampler that takes up approximately 60% of the floorspace required for the larger instrument.
  • CAPABLE
     Phase Identification and quantification, Whole Pattern Fitting, Rietveld modeling, Crystallite size calculation, Phi-axis is standard
  • POWDER XRD WORKHORSE
     We recommend the D4 Endeavor instruments for applications that require a large autosampler and wherever space is a concern.

More Info

The Bruker D4 Endeavor is built on the same platform as the D8 Series 1 and 2 instruments, but is designed for maximum throughput. They served users with high sample volumes who needed large autosamplers. These have been the ideal choice for industries like cement, geology, and aluminum production. The D4 comes standard with a 66-position autosampler including a 2-position transfer mechanism which allows for samples to be added or removed from the magazine without interrupting the measurement in-process.

  • Goniometer
     Theta/2Theta (Θ/2Θ) goniometer
  • Independent control of each axis for grazing incidence and rocking curves
  • 0.0001°/step minimum step size.
  • High-voltage generator
     Medium frequency (20KHz) design
  • 3.0 KW max power
  • Computer-controlled generator
  • Source
     Standard air-insulated, short-anode X-ray tube
  • Cu, Co, Cr, Mo, Ag anodes and various focal spot sizes available
  • Sample stages
     Phi-axis stage (stepper-controlled rotation) standard
  • 66-position autosampler
  • Detection
     Standard scintillation counter (Diffracted-beam monochromator recommended)
  • LynxEye Si-Strip Position-Sensitive detector (PSD)
  • Software
     MDI Jade Standard or Pro versions
  • ICDD Databases
  • Cooling
     Closed-loop water chillers
  • Air or Water-cooled condensers
