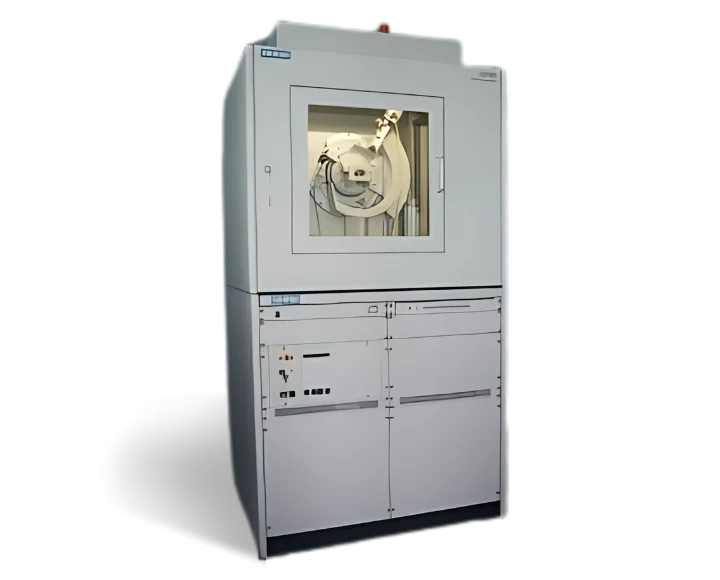

Siemens D5000

The Siemens D5000 has been our most popular refurbished model for a few years now and continues to offer the best value in advanced XRD analysis by far. These systems are extremely robust and inexpensive to operate without sacrificing their modular nature. We’re strong believers in this “workhorse” model and operate one for our in-house powder XRD […]

Request a Quote

Key Info

  • DURABLE
     Designed for continuous use. The 40-position autosampler allows for overnight operation.
  • COST-EFFECTIVE
     The D5000 is an ideal solution for basic to intermediate XRD on a budget
  • CAPABLE
     Phase Identification and quantification, Whole Pattern Fitting, Rietveld modeling, Crystallite size calculation, Films, Basic Texture with Phi axis
  • WORKHORSE
     These instruments are trusted by some of the most demanding labs for applications like industrial hygiene and geological analysis

More Info

The Siemens D5000 has been our most popular refurbished model for a few years now and continues to offer the best value in advanced XRD analysis by far. These systems are extremely robust and inexpensive to operate without sacrificing their modular nature. We’re strong believers in this “workhorse” model and operate one for our in-house powder XRD work.

  • Goniometer
     Theta/2Theta and Theta/Theta versions
  • Independent control of each axis for grazing incidence and rocking curves
  • 0.001°/step minimum step size. (0.0002° optional)
  • High-voltage generator
     Medium frequency (20KHz) design
  • 2.7KW max power
  • Manual controls (computer controll optional)
  • Source
     Standard air-insulated, short-anode X-ray tube
  • Cu, Co, Cr, Mo, Ag anodes and various focal spot sizes available
  • Sample stages
     Fixed stage
  • Rotating stage (synchronous)
  • Phi-axis stage (stepper controlled rotation)
  • 40-position autosampler with rotation
  • Capillary state
  • Detection
     Standard scintillation counter (Diffracted-beam monochromator recommended)
  • KSA SDD-150 energy-dispersive detector. Data collection speed increased 3-4x.
  • Software
     MDI Jade Standard or Pro versions
  • ICDD Databases
  • Cooling
     Closed-loop water chillers
  • Air or Water-cooled condensers
