Refurbished & Older Models

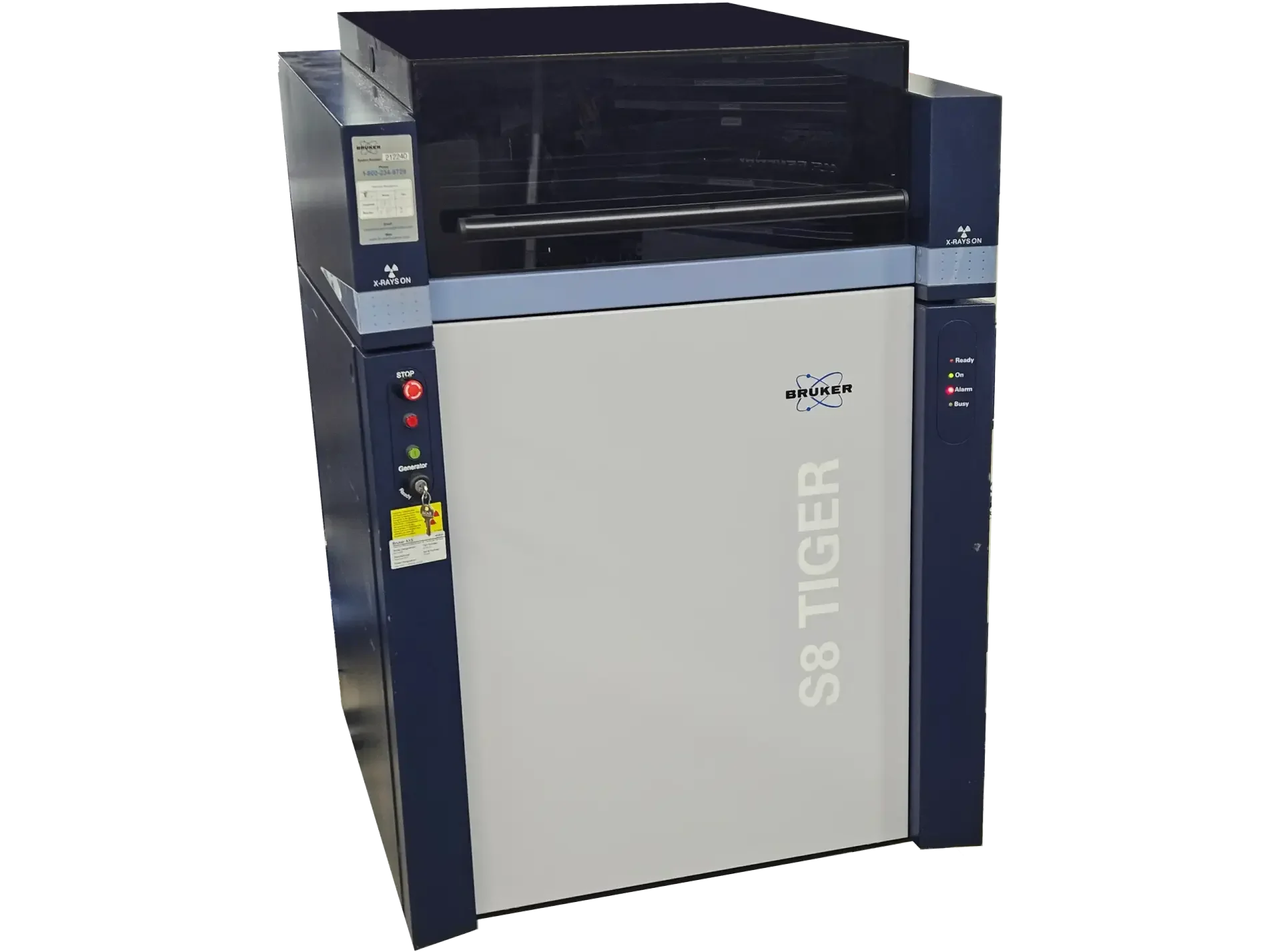

Bruker S8 Tiger Series 1

The Bruker S8 Tiger is a compact Wavelength-Dispersive X-ray Fluorescence Spectrometer (WDXRF). The Series 1 shares much of the architecture with the current Series 2 Tiger models along with its excellent reliability and performance. These systems were offered in a wide range of configurations. See details below for specifics on this particular instrument.

Request a Quote

Key Info

  • Power
     1KW High-voltage generator
  • 4KW X-ray tube (preferred for long lifespan)
  • Autosampler
     75-positions. Configured for Bruker “EasyLoad” sample cups with two removable trays for 20 cups/each.
  • 20 sample cups included with system.
  • Software
     Windows 11 PC with SpectraPlus software
  • Cooling
     No external water chiller is required for the 1KW S8 Tiger. Heat is transferred to ambient air.
  • Detectors
     Scintillation counter for heavier elements
  • Flow Proportional counter (rebuildable, requires P10 gas supply @7psi)
  • Crystals
     8-positions
  • LiF200, PET, XS-55 (elements from U to Na) included
  • Additional crystals optional
  • Collimators (Soller Slits)
     4-positions
  • 0.23° (fine) and 0.46° (Coarse) included
  • Masks
     3-positions
  • Blank, 28mm, 34mm included
  • Filters
     10-positions
  • Standard filter configuration, including Be tube shield included
